Martin ProSceniumDMX as a DMX Monitor

As a DMX Monitor, Martin ProSceniumDMX is simply interconnected pass-through the DMX-512 line going to all of your DMX devices. The PC can monitor the DMX line and show the values of all DMX channels, giving your earlier console direct DMX visualization.

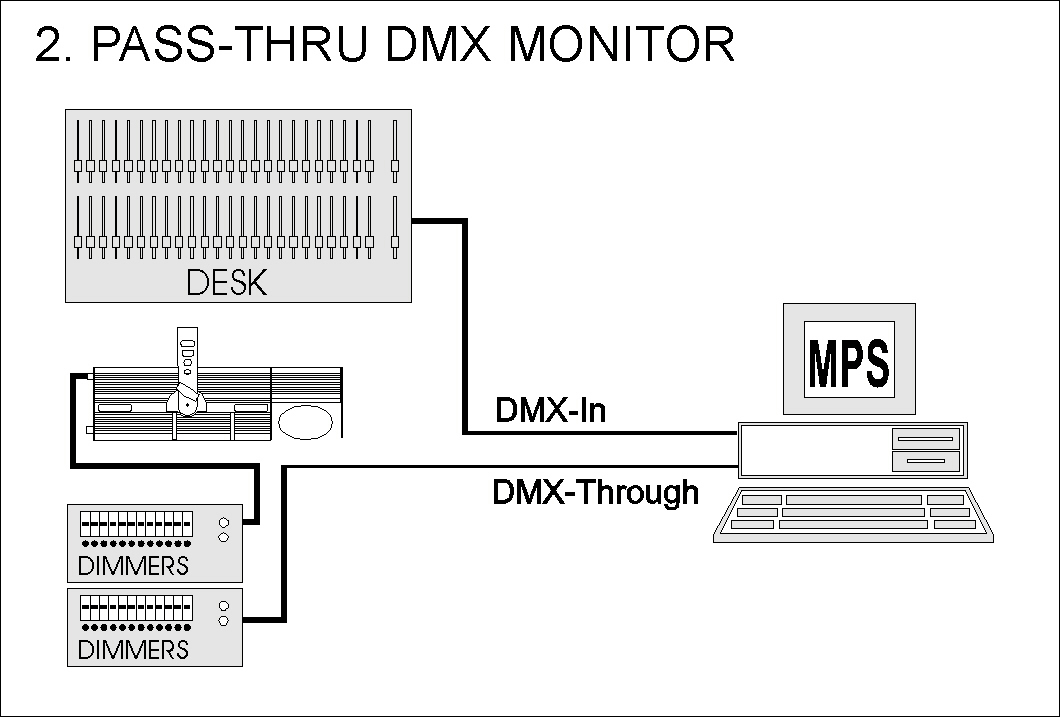

Here is the connection scheme:

ProsceniumDMX application 2
