Martin Proscenium^DMX Multimedia Lighting Controller

Martin Proscenium^DMX is the latest generation of Digimedia visual lighting software for Windows 95. This powerful software is the evolution of our DMXPlus software, evolved from the initial DOS version developed in 1995 to the current powerful visual and multimedia version. A worldwide exclusive distribution agreement with Martin Professional A/S makes this powerful product widely available.

The powerful Multimedia capabilities of Windows 95 are finally at your service to quickly develop powerful and inexpensive lighting solutions. This revolutionary visual DMX-512 lighting control package can greatly simplify lighting show control. Martin ProScenium^DMX applications are targeted to these fields:

Theatre, Opera, Television, Architectural, Exhibition

Martin ProScenium^DMX is a simple, general-purpose, PC-based DMX-512 Multimedia Lighting Controller that gives you:

• Simple and powerful Moving Light Control
• Intuitive and sophisticated Multimedia capabilities
• Inexpensive backup of larger, costly DMX consoles
• Playback and Capture of USITT-ASCII show files

Two ProScenium^DMX packages are available through Martin Distribution Network:

• Martin Proscenium^DMX internal kit (Software and PCI DMX I/O card)
• Martin Proscenium^DMX portable kit (Software and PCMCIA portable DMX adapter)(*)

(*)contact Martin distributors for availability

Here are the main Martin Proscenium^DMX features (more details in the Specifications page):

• Easy-to-use Moving Light control window
• Windows MCI Multimedia Capabilities
• SMPTE, MIDI, Internal Clock, CDAudio Syncronization
• DMX Unpatch and Full-Duplex merge
• 512 Channels and 32 independent Presets
• Unlimited cue storage
• Two indipendent Presets (A and B)
• Time-In/Time-Out crossfade
• Digital patch, digital curves
• Multiple indipendents Chasers
• Full Keyboard, mouse and Joystick Control
• Filter and Spot Libraries with most DMX devices
• SpotMaint tool for easy spot library management
• 100% ASCII-USITT compatible
• 2-D lighting plan for "click-and-select" control

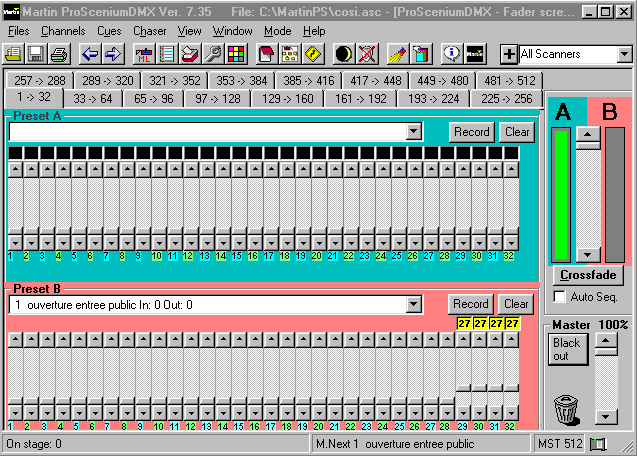

Proscenium^DMX user interface

Download Martin ProScenium^DMX User's Manual
