DMXCard Dual/Quad-Link DMX-512 PCI Interface Card

A unique, innovative product, developed by Digimedia, that allows professional use of DMX control using desktop computers with a very reliable and low-cost solution.

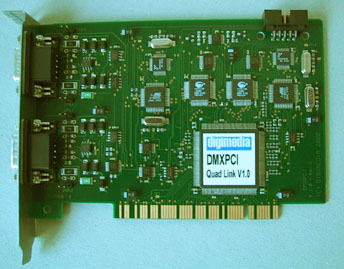

DMXPCI, DMX PCI Card, is a PCI standard Dual/Quad-Link DMX interface. It is very small and perfectly suitable for use with Windows desktops, addressing a large number of applications.

Different versions are available for various controller product. Naturally, DMXPCI is provided coupled with the powerful Martin ProSceniumDMX software package in the Martin ProSceniumDMX PCI kit.

The device is also available for licensing to large OEM users, bundled with DMX libraries. For further information regarding OEM customized versions of DMXPCI, please contact Digimedia Support

DMXPCI kit is made of a standard PCI card, a very solid molded-type shielded cable and a rugged wiring metal box with two IN/THRU-OUT connectors available with XLR 3-pin and 5-pin versions (or with a low cost DB9 to XLR 3-pin and 5-pin versions Cable).Power is supplied by the desktop and automatic cable switch and termination handling is provided. DMX line interface is surge and short-circuit protected, to minimize risk of damaging the PC with transient voltages or serious DMX cabling problems.

DMXPCI is capable of driving and receiving DMX-512 signal as defined by USITT-1990 specifications, with full 2048-channels In and Out resolution. The interface is intelligent (microprocessor based) to let PC CPU be dedicated to the lighting program with all DMX line handling done by DMXPCI processor.
